DESCRIPTION

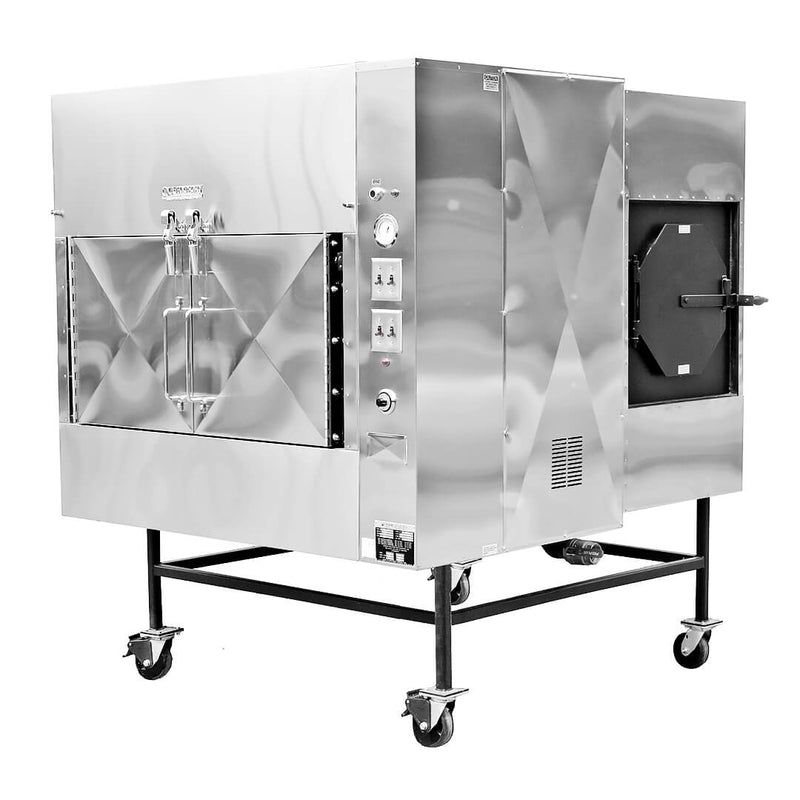

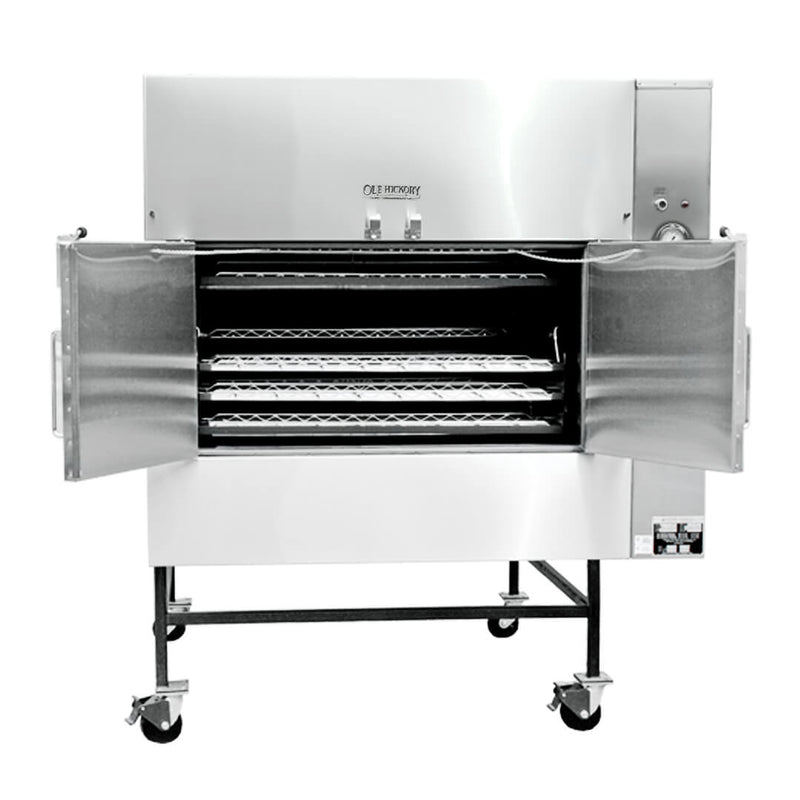

One of our most popular middle-sized end-loading rotisserie smokers. Designed to cook evenly, efficiently, and be less labor intensive, this model supports 15 12” x 42” racks, and about a 500 lbs cooking capacity. This smoker will help you serve consistent, reliable barbecue every time you fire it up.

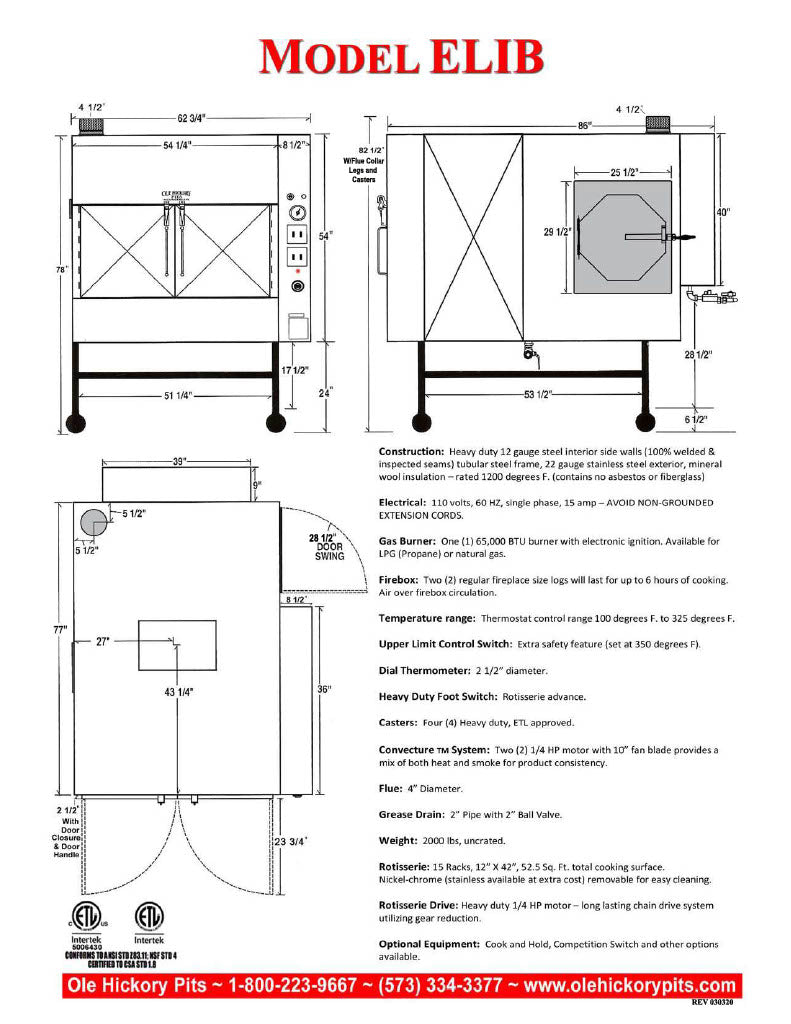

CONSTRUCTION
Heavy duty 12 gauge steel interior side walls (100% welded & inspected seams) tubular steel frame, 22 gauge stainless steel exterior, mineral wool insulation - rated 1200 degrees F. (contains no asbestos or fiberglass)
ELECTRICAL
110 volts, 60 HZ, single phase, 15 amp -AVOID NON-GROUNDED EXTENSION CORDS.
GAS BURNER
One (1) 65,000 BTU burner with electronic ignition. Available for LPG (Propane) or natural gas.
FIREBOX
Two (2) regular fireplace size logs will last for up to 6 hours of cooking. Air over firebox circulation.
TEMPERATURE RANGE
Thermostat control range 100 degrees F. to 32S degrees F.
UPPER LIMIT CONTROL SWITCH
Extra safety feature (set at 350 degrees F).
DIAL THERMOMETER
2 1/2" diameter.
HEAVY DUTY FOOT SWITCH
Rotisserie advance.
CASTERS
Four (4) Heavy duty, ETL approved.
CONVECTURE™ SYSTEM
Two (2) 1/4 HP motor with 10" fan blade provides a mix of both heat and smoke for product consistency.
FLUE
4" diameter.
GREASE DRAIN
2" Pipe with 2" Ball Valve.
WEIGHT
2000 lbs, uncrated.
ROTISSERIE
15 Racks, 12" X 42", 52.S Sq. Ft. total cooking surface. Nickel-chrome (stainless available at extra cost) removable for easy cleaning.
ROTISSERIE DRIVE
Heavy duty 1/4 HP motor- long lasting chain drive system utilizing gear reduction.
OPTIONAL EQUIPMENT
Cook and Hold, Competition Switch and other options available.
